Mushroom Head
Also called Brazier, Oval, Truss or Universal Imperial Sizes
|
|
Small Solid Imperial Rivets for General Engineering Purposes
|
|

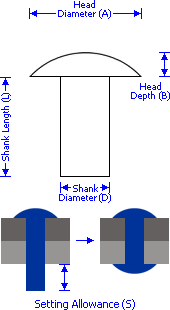

BS 641 : 1951 Table 3 Mushroom Head
Under ½ Inch Diameter - All Dimensions in Inches - All Materials
|
|
- - - Shank Diameter - - - |
Head Diameter |
Head Depth |
Setting |
|
Nominal
D |
&
|
Tolerance
|
A=2.25D |
B=0.5D |
Allowance
S=1.349D |
1/32* |
0.031 |
0.027 / 0.033 |
0.070 |
0.016 |
0.042 |
3/64* |
0.047 |
0.043 / 0.049 |
0.105 |
0.023 |
0.063 |
1/16 |
0.063 |
0.059 / 0.065 |
0.141 |
0.031 |
0.084 |
5/64* |
0.078 |
0.074 / 0.080 |
0.176 |
0.039 |
0.105 |
3/32 |
0.094 |
0.090 / 0.096 |
0.211 |
0.047 |
0.126 |
7/64* |
0.109 |
0.105 / 0.111 |
0.246 |
0.055 |
0.148 |
1/8 |
0.125 |
0.121 / 0.127 |
0.281 |
0.063 |
0.169 |
9/64* |
0.141 |
0.137 / 0.143 |
0.316 |
0.070 |
0.190 |
5/32 |
0.156 |
0.152 / 0.158 |
0.352 |
0.078 |
0.211 |
3/16 |
0.188 |
0.184 / 0.190 |
0.422 |
0.094 |
0.253 |
7/32* |
0.219 |
0.214 / 0.222 |
0.492 |
0.109 |
0.295 |
1/4 |
0.250 |
0.245 / 0.253 |
0.563 |
0.125 |
0.337 |
9/32* |
0.281 |
0.276 / 0.284 |
0.633 |
0.141 |
0.379 |
5/16 |
0.313 |
0.307 / 0.317 |
0.703 |
0.156 |
0.422 |
3/8 |
0.375 |
0.367 / 0.379 |
0.844 |
0.188 |
0.506 |
7/16 |
0.438 |
0.429 / 0.443 |
0.984 |
0.219 |
0.590 |
The Britsh Standard does not specify tolerances for Head Diameter, Depth & Radius, or Shank Length.
It is normal to have a radius under the head, but no dimensions are specified.
*These Diameters are not specifically denoted in BS 641 Table 3.
|
|
|
