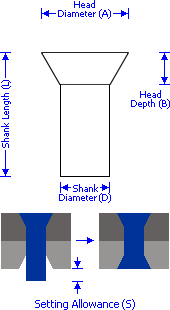

60° Countersunk Head
Also called Flat 60° Countersunk Head Imperial Sizes
|
|
Small Solid Imperial Rivets for General Engineering Purposes
|
|
BS 641 : 1951 Table 5 60° Countersunk Head
Under ½ Inch Diameter - All Dimensions in Inches - All Materials
|
|
- - - Shank Diameter - - - |
Head Diameter |
Head Depth |
Setting |
|
Nominal
D |
&
|
Tolerance
|
A=1.75D |
B=0.65D |
Allowance
S=0.609D |
1/32* |
0.031 |
0.027 / 0.033 |
0.055 |
0.020 |
0.019 |
3/64* |
0.047 |
0.043 / 0.049 |
0.082 |
0.030 |
0.029 |
1/16* |
0.063 |
0.059 / 0.065 |
0.109 |
0.041 |
0.038 |
5/64* |
0.078 |
0.074 / 0.080 |
0.137 |
0.051 |
0.048 |
3/32 |
0.094 |
0.090 / 0.096 |
0.164 |
0.061 |
0.057 |
7/64* |
0.109 |
0.105 / 0.111 |
0.191 |
0.071 |
0.067 |
1/8* |
0.125 |
0.121 / 0.127 |
0.219 |
0.081 |
0.076 |
9/64* |
0.141 |
0.137 / 0.143 |
0.246 |
0.091 |
0.086 |
5/32* |
0.156 |
0.152 / 0.158 |
0.273 |
0.102 |
0.095 |
3/16 |
0.188 |
0.184 / 0.190 |
0.328 |
0.122 |
0.114 |
7/32* |
0.219 |
0.214 / 0.222 |
0.383 |
0.142 |
0.133 |
1/4 |
0.250 |
0.245 / 0.253 |
0.438 |
0.163 |
0.152 |
9/32* |
0.281 |
0.276 / 0.284 |
0.492 |
0.183 |
0.171 |
5/16 |
0.313 |
0.307 / 0.317 |
0.547 |
0.203 |
0.190 |
3/8 |
0.375 |
0.367 / 0.379 |
0.656 |
0.244 |
0.228 |
7/16 |
0.438 |
0.429 / 0.443 |
0.766 |
0.284 |
0.266 |
The Britsh Standard does not specify tolerances for Head Diameter & Depth,
Angle of Countersink or Shank Length.
It is normal to have a radius under the head and at the periphery of the countersink,
but no dimensions are specified.
*These Diameters are not specifically denoted in BS 641 Table 5.
|
|
|
